CA 1227 熱風速計

chevron_right



  • USB
  •
  • ANDROID
  •
  • BLUETOOTH



  • Wide backlit display

  • MAP function for mapping the air speeds measured

  • Min, Max, Average and Hold functions

  • Flow rate measurement

  • Recording up to 1 million points

  • Communicating via USB or Bluetooth

  • Data Logger Transfer software with automatic report generation

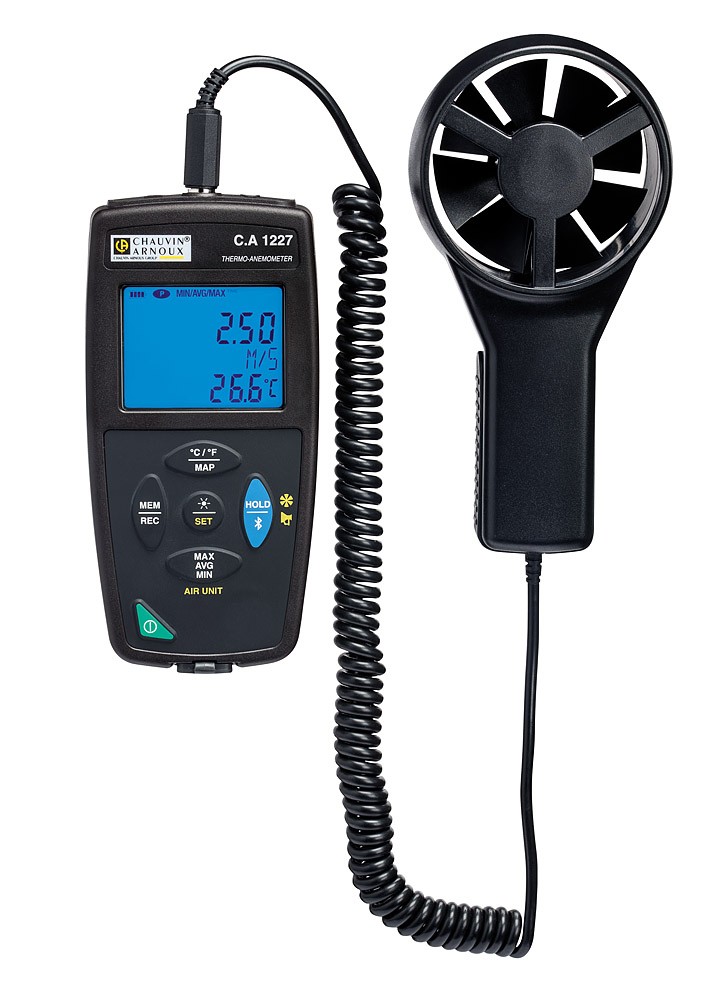

Equipped with a wide backlit display, the C.A 1227 offers all the useful functions for measuring air speed and flow rate in the field, such as Min, Max, Average, MAP and Hold as well as extensive recording capabilities. With the cones available as accessories, it is possible to perform direct flow rate measurements.

The Data Logger Transfer software is available for free download to view the recorded data, configure the C.A 1227, benefit from remote display and generate automatic reports

Attribute Value
Measurement Parameters Air speed, Air Flow, Temperature
Maximum Air Velocity 35m/s
Best Air Velocity Accuracy ±3 %
Air Velocity Resolution 0.01m/s
Probe Type Vane
Maximum Temperature +50°C
Temperature Measurement Resolution 0.1 °F, 0.1 °C
Best Temperature Measurement Accuracy ±0.8 °C
Power Source Battery
Battery Type AA
Battery Life 200 h
Weight 400g
Height 150mm
Maximum Operating Temperature +60°C
Length 72mm
Minimum Operating Temperature -10°C
Width 32mm
Model Number p CA 1227
A 1227 熱風速計使用手冊
PDF檔案格式
A 1227 熱風速計型錄
PDF檔案格式
