Evaluation of moisture absorption, degradation, and contamination of High Voltage Transformers.
Insulation evaluation of High Voltage Rotating Machines.
Electrical Characteristics and degradation evaluation of Lubricants.

■Single measurement enables evaluation of insulation.
No need to compare past data to analyze insulation degradation factors.
■Compact・Light weight・Battery-powered.
Easy on-site measurement with a single unit.
■The state of insulation is clearly analyzed.
No specialized expertise is required.

Frequency Domain Insulation Diagnostic

Evaluation of high-voltage transformers.

Analyzes trends in frequency characteristics to diagnose increased moisture content and oil deterioration/contamination.

Insulation diagnosis of high-voltage rotating machines　　　　

Determine moisture absorption or surface contamination trends based on capacitance and tan δ frequency characteristics.

Evaluation of dielectric and insulating properties of lubricants

Capable of measuring up to approx. 1000% tan δ at a test voltage of 200Vrms.
Evaluates insulation characteristics of motors containing lubricating oil.

Specifications

Product name
Model	DAC-FIND-1
Capacitance	300pF - 2µF (4-digit display）
tan δ	0.01% - 999.9% (Min resolution 0.01%)
Test Power supply	Frequency　10mHz - 100Hz Voltage　200Vrms, 20Vrms
Power source	Battery: 　Nickel‐hydrogen 12V/4200mAh (Continuous operation: 4 hours） AC adaptor:　Input AC100 -　240V
Size & dimensions	W394 x D307 x H173 (mm) About 7kg

DAC-FIND-1頻域絕緣診斷型錄

PDF檔案格式

下載

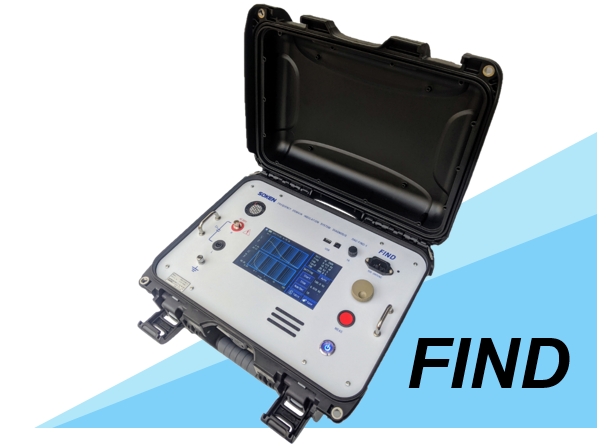

頻域絕緣診斷測量儀FIND
