611/611W charge Type Accelerometers
chevron_right
Features
-
Sub-miniature
Specifications
| Model | 611 | 611W |
|---|---|---|
| sensitivity (pC/m/s2) | 0.035±20% | 0.0459±15% |
| Transverse sensitivity (max) | 5% | 5% |
| Capacitance | 580pF±20%(cable3m) | 580pF±20%(cable3m) |
| Operating Temperature range | -50℃ - 160℃ | -50℃ - 160℃ |
| Frequency response (Hz)±3dB | fc - 20,000Hz | fc - 20,000Hz |
| Resonance frequency | 60kHz | 60kHz |
| Max. Acceleration (m/s2) | ±100,000 | ±10,000 |
| Impact resistance (peak) (m/s2) | 100,000 | 50,000 |
| ground | Case ground | Case ground |
| Cable | 3m(installed) | 3m(installed) |
| Connector | Miniature connector(10-32UNF) | Miniature connector(10-32UNF) |
| Case material | Titanium | Titanium |

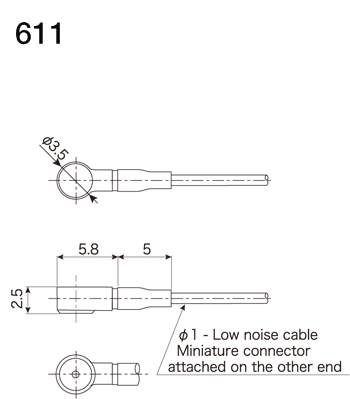

| External dimensions (mm) | Φ3.5×2.5H(Connector not included) | Φ3.5×3.3H(Connector not included) |
| Weight | approx. 0.2g | approx. 0.2g |
| Remarks | Sub-miniature | Sub-miniature Waterproof |
