TEAC荷重元總合選擇表

Loadcell General Selection

特點

特點
規格表
文件下載
影片

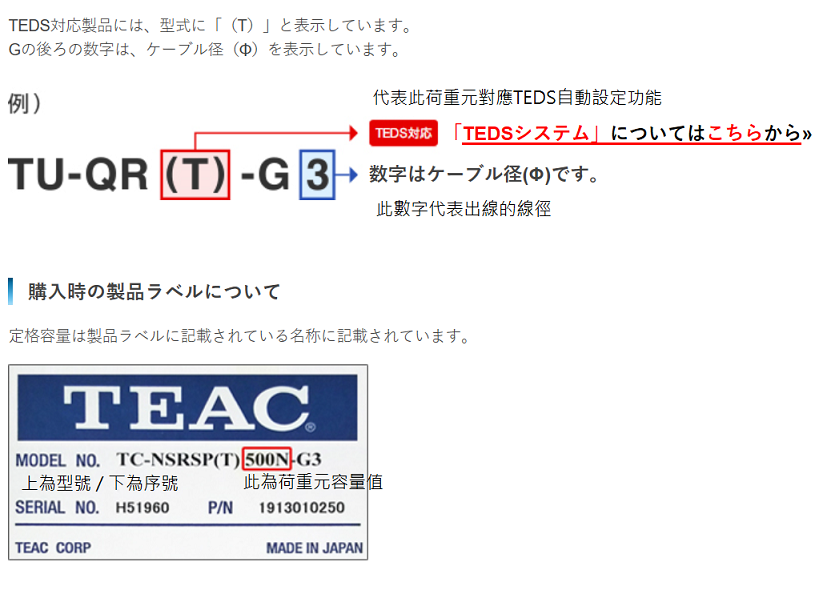

TEAC 荷重元型號序號與容量識別法容量總表, 請點選右邊"規格"一欄

荷重元識別圖

Compression

TC-AR(T)☐☐KN-G6

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　20kN~30kN

Features　Compact, lightweight, corrosion-resistant, low-cost

Compression

TC-AR(T)☐☐KN-G8

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　50kN~200kN

Features　Compact, lightweight, corrosion-resistant, low-cost

Compression

TC-BSR(T)☐☐KN-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　10kN~50kN

Features　high load 10KN, 20kN, 50kN, low cost, small size

Compression

TC-FR(T)☐☐N/KN-G6

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　500N~20kN

Features　Compact, lightweight, corrosion-resistant, low-cost

Compression

TC-FSRSP2(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　10N, 20N, 100N

Features　Compact, Screw mount

Compression

TC-FSRSP(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　50N

Features　Compact, Screw mount

Compression

TC-KR(T)☐☐KN-G6

TEDS

RoHS

Robot cable

Shape　Center hole

Rated Capacity (R.C.)　5kN~300kN

Features　Compact · Center hole type · Suitable for press fitting, caulking

Compression

TC-LPR(T)☐☐N/KN-G6

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　500N~3kN

Features　It is thin and supports RoHS, and TEDS incorporation, a road button are removable

Compression

TC-MFSR(T)☐☐N-G

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　20N~50N

Features　small type, flat load point

Compression

TC-MR(T)☐☐KN-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　5kN～20kN

Features　Compact, lightweight

Compression

TC-NSRSP(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　50N~500N

Features　Small, Light weight, Screw mount

Compression

TC-NSR(T)☐☐KN-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　1kN~2kN

Features　Small, Light weight, Screw mount

Compression

TC-SR☐☐KN-G3

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　5kN~10kN

Features　Ultra-compact, lightweight, thin, low capacity.

Compression

TC-SR(T)☐☐N-G

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　5N~50N

Features　Ultra-compact, lightweight, thin, low capacity.

Compression

TC-SR(T)☐☐N/KN-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　100N~2kN

Features　Ultra-compact, lightweight, thin, low capacity.

Compression

TC-USR(T)☐☐N/KN-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　0.5N~2kN

Features　Ultra low capacity · With stopper · Screw hole · Low temperature effect

Compression

TC-XR(T)☐☐KN-G6

TEDS

RoHS

Robot cable

Shape　Center hole

Rated Capacity (R.C.)　20kN~300kN

Features　Compact · Center hole type · Suitable for press fitting, caulking

Tension/Compression

TU-BR☐☐N/KN-G

RoHS

Shape　S-beam

Rated Capacity (R.C.)　200N~20kN

Features　High precision / Compact

Tension/Compression

TU-CR(T)☐☐N/KN-G6

TEDS

RoHS

Robot cable

Shape　Beam

Rated Capacity (R.C.)　50N~2kN

Features　High precision / Compact

Tension/Compression

TU-FSRSP2(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　10N, 20N, 100N

Features　Compact, Screw mount

Tension/Compression

TU-FSRSP(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　Load button

Rated Capacity (R.C.)　50N

Features　Compact, Screw mount

Tension/Compression

TU-GR☐☐KN-G

RoHS

Shape　Shear beam

Rated Capacity (R.C.)　5kN~1000kN

Features　Shear · Center hole type

Tension/Compression

TU-MBR(T)☐☐N-G3

TEDS

RoHS

Robot cable

Shape　S-beam

Rated Capacity (R.C.)　2N~20N

Features　Ultra Compact, Safe overload of 500%

Tension/Compression

TU-MXR2(T)☐☐N-G3

TEDS

RoHS

Shape　Beam

Rated Capacity (R.C.)　10N~500N

Features　Thin airtight structure · Compact · Lightweight · Connector type

Tension/Compression

TU-NR-C☐☐KN-G

RoHS

Shape　Shear beam

Rated Capacity (R.C.)　1kN~200kN

Features　Shear · Center hole type

Tension/Compression

TU-PGRS☐☐N/KN-G

RoHS

Shape　High precision

Rated Capacity (R.C.)　100N~20kN

Features　High precision · Sealed structure · High stability

Tension/Compression

TU-PGRH☐☐N/KN-G

RoHS

Shape　High precision

Rated Capacity (R.C.)　200N~5kN

Features　High precision

Tension/Compression

TU-QR(T)☐☐N/KN-G3

TEDS

RoHS

Robot cable

Rated Capacity (R.C.)　50N~2kN

Features　Compact, lightweight · wide range of applications

Tension

TT-FR(T)☐☐N/KN-G6

TEDS

RoHS

Robot cable

Rated Capacity (R.C.)　500N~10kN

Features　Small size, light weight, corrosion resistance

Compression

TC-PF2(T)☐☐N/KN-G

TEDS

RoHS

Rated Capacity (R.C.)　500N~2kN

Features　Thin, lightweight

Compression

TC-WLD(T)☐☐KN-G

TEDS

RoHS

Rated Capacity (R.C.)　500N~10kN

Features　Compact, lightweight

Floor Scale

TL-LF

RoHS

Shape　Floor Scale

Rated Capacity (R.C.)　500N~10kN

Floor Scale

TL-PM

RoHS

Shape　Floor Scale

Rated Capacity (R.C.)　500N~10kN

Floor Scale

TL-PS

RoHS

Shape　Floor Scale

Rated Capacity (R.C.)　500N~10kN

Floor Scale

TL-PW

RoHS

Shape　Floor Scale

Rated Capacity (R.C.)　500N~10kN

TEAC 荷重元選擇表.pdf

日文PDF

下載

開昌代理荷重元總表

PDF

下載
